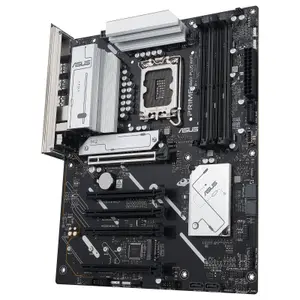

Asus Bundkort ASUS Prime B860-Plus WiFi (Intel LGA 1851)

Processor

• Socket: Intel LGA 1700
• Chipset: Intel B860

Memory Standard

• Type of RAM: DDR5
• Memory format: UDIMM (DIMM)
• Memory standard: PC5-38400 (4800 Mhz)
• DDRx slots: 4 slots

Storage Capacity

• Supported RAID type(s): 0, 1, 5, and 10

Display

• Maximum supported resolution: 4096x2160 (4K Cinema)

Connectivity

• S-ATA III port: 4 ports
• M.2 slots: 2 slots
• PCI-Express standard: PCI-Express 5.0
• PCI-Express 16X port: 4 ports
• Wi-Fi: Multi-User MIMO and Wi-Fi 6 (802.11ax)
• Wi-Fi frequency: 2.4Ghz, additional 5/6Ghz (Backhaul) and 5Ghz
• Antenna: 2 antennas
• Bluetooth: Bluetooth 5.3
• LAN speed: 2.5 Gbit/s (IEEE 802.3bz)

Connections

• Video connection: 1x DisplayPort and 1x HDMI
• Alternative video connection: 1x USB Type C
• Audio connection: 3 x 3.5mm Jack Outputs (5.1 Sound)
• External USB 2.0 port: 4 ports
• External USB 3.0 port (3.2 Gen 1 / 5Gbit/s): 1 port
• External USB 3.1 port (3.2 Gen 2 / 10Gbit/s): 2 ports
• External USB-C port (3.x /4.x /5.x): 1 port
• Internal USB 2.0 port: 1 port
• Internal USB 3.0 port (3.2 Gen 1 / 5Gbit/s): 1 port
• Internal USB-C port (3.x /4.x /5.x): 2 ports
• Total RJ45 port: 1 port

Audio Performance

• Audio chipset: Realtek
• Number of audio channels: 8 channels

Design & Aesthetics

• Compatible format: ATX
• Main color(s): Silver and Black

Weight & Dimensions

• Length / Depth: 30.5cm
• Width: 24.4cm
• Weight with packaging: 1.7 kg
