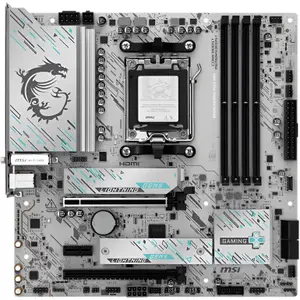

MSI Bundkort B850M Gaming Plus WiFi (AMD AM5) Micro ATX

Processor

• Socket: AMD AM5
• Chipset: AMD B850

Memory Standard

• Type of RAM: DDR5
• Memory Format: UDIMM (DIMM)
• Memory Standard: PC5-44800 (5600 MHz)
• DDRx Slots: 4 slots

Storage Capacity

• Supported RAID Types: 0, 1, and 10

Display

• Maximum Supported Resolution: 4096x2160 (4K Cinema)

Connectivity

• S-ATA III Port: 4 ports
• M.2 Slot: 2 slots
• PCI-Express Standard: PCI-Express 5.0
• PCI-Express 16X Port: 2 ports
• PCI-Express 1X Port: 1 port
• Wi-Fi: Multi-User MIMO and Wi-Fi 7 (802.11be)
• Wi-Fi Frequency: 2.4Ghz, 5/6Ghz additional (Backhaul) and 5Ghz
• Antenna: 2 antennas
• Bluetooth: Bluetooth 5.4
• LAN Speed: 2.5 Gbit/s (IEEE 802.3bz)

Connections

• Video Connectivity: 1x DisplayPort and 1x HDMI
• Audio Connectivity: 3 x 3.5mm Jack Outputs (5.1 Sound)
• Internal USB 2.0 Port: 2 ports
• External USB 3.0 Port: 3 ports
• Internal USB 3.0 Port: 1 port
• External USB 3.1 Port: 3 ports
• External USB 3.x type C Port: 2 ports
• Internal USB 3.x type C Port: 1 port
• Total RJ45 Port: 1 port

Sound Performance

• Audio Chipset: Realtek ALC897
• Number of Audio Channels: 8 channels

Design & Aesthetics

• Compatible Format: Micro-ATX
• Main Color(s): White

Weight & Dimensions

• Length / Depth: 24.4cm
• Width: 24.4cm
• Weight with Packaging: 1.72 kg

Other Technical Features

• Cooling Type: Heat Sink (passive)
