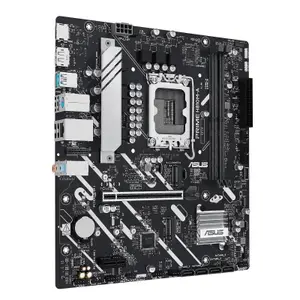

Asus Bundkort ASUS Prime H810M-A-CSM (Intel LGA 1851) Micro ATX

Processor

• Socket: Intel LGA 1851
• Chipset: Intel H810

Memory Standard

• Type of memory: DDR5
• Memory format: CUDIMM (Clocked Unbuffered DIMM) and UDIMM (DIMM)
• Memory standard: PC5-41600 (5200 MHz)
• DDRx slots: 2 slots

Display

• Maximum supported resolution: 3840x2160 (4K Ultra HD)

Connectivity

• SATA III ports: 4 ports
• M.2 slots: 2 slots
• PCI-Express standard: PCI-Express 4.0
• PCI-Express 16X port: 1 port
• PCI-Express 1X port: 1 port
• LAN speed: 1000 Mbits/s (Gigabit IEEE 802.3ab)

Connections

• Video connectivity: 1x DisplayPort and 1x HDMI
• Audio connectivity: 3 x 3.5mm Jack Outputs (5.1 Sound)
• External USB 2.0 ports: 4 ports
• External USB 3.1 (3.2 Gen 2 / 10Gbit/s) ports: 2 ports
• Internal USB 2.0 port: 1 port
• Internal USB 3.0 (3.2 Gen 1 / 5Gbit/s) port: 1 port
• Internal USB-C (3.x /4.x /5.x) port: 1 port
• Total RJ45 port: 1 port

Sound Performance

• Audio chipset: Realtek
• Number of audio channels: 8 channels

Design & Aesthetics

• Compatible format: Micro-ATX
• Main color(s): Silver and Black

Weight & Dimensions

• Length / Depth: 24.4cm
• Width: 22.2cm
• Weight with packaging: 0.78 kg

Other technical features

• Cooling type: Heat sink (passive)
