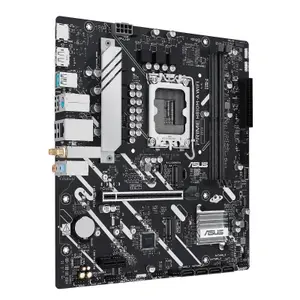

Asus Bundkort ASUS Prime H810M-A Wifi (Intel LGA 1851) Micro ATX

Processor

• Socket: Intel LGA 1851
• Chipset: Intel H810

Memory Standard

• Type of RAM: DDR5
• Memory format: CUDIMM (Clocked Unbuffered DIMM) and UDIMM (DIMM)
• Memory standard: PC5-51200 (6400 MHz)
• DDRx slots: 2 slots

Display

• Maximum supported resolution: 3840x2160 (4K Ultra HD)

Connectivity

• S-ATA III port: 4 ports
• M.2 slot: 2 slots
• PCI-Express standard: PCI-Express 4.0
• PCI-Express 16X port: 1 port
• PCI-Express 1X port: 1 port
• Wi-Fi: Wi-Fi 6 (802.11ax)
• Wi-Fi frequency: 2.4Ghz and 5Ghz
• Antenna: 2 antennas
• Bluetooth: Bluetooth 5.3
• LAN speed: 1000 Mbits/s (Gigabit IEEE 802.3ab)

Connections

• Video connection: 1x DisplayPort and 2x HDMI
• Audio connection: 3 x 3.5mm Jack Outputs (5.1 Sound)
• External USB 2.0 port: 4 ports
• External USB 3.1 port (3.2 Gen 2 / 10Gbit/s): 2 ports
• Internal USB 2.0 port: 1 port
• Internal USB 3.0 port (3.2 Gen 1 / 5Gbit/s): 1 port
• Internal USB-C port (3.x/4.x/5.x): 1 port
• Total RJ45 port: 1 port

Sound Performance

• Audio chipset: Realtek
• Number of audio channels: 8 channels

Design & Aesthetics

• Compatible format: Micro-ATX
• Main color(s): Silver and Black

Weight & Dimensions

• Length / Depth: 24.4cm
• Width: 22.2cm
• Weight with packaging: 0.93 kg

Other technical characteristics

• Accessory(ies) provided: WiFi Antenna
